Fire bricks for SHT dual fuel Thermodual log and pellet boiler. Model size 30-40kW

Fire brick

Products

Insulating block FT 380x320x70 TDA, TDA 30/41

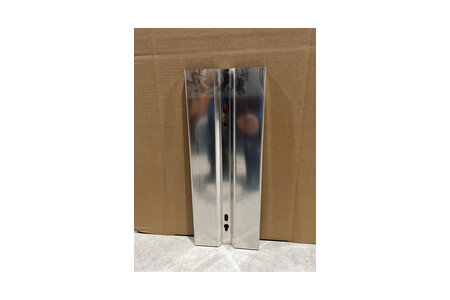

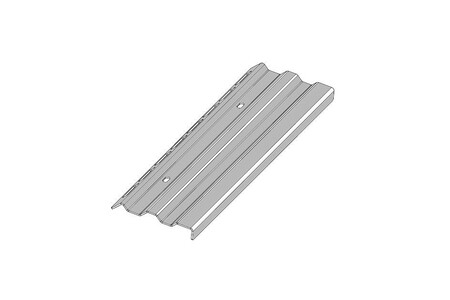

TDA 30/40 additional sacrificial plate See item SHT2A24E1 for left/right hand side pieces

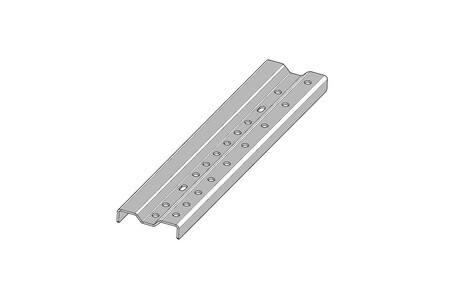

TDA 30/40 additional sacrificial plate See item SHT2A24E2 for central plate
Pellet burning chamber stone right TDA40
Combustion chamber left TDA 30/40
Combustion chamber right TDA 30/40
Gasification chamber brick front right TDA 30/41
Gasification chamber brick rear right TDA 30/41
Gasification chamber brick front left TDA 30/41
Gasification chamber brick rear left TDA 30/41
Combustion chamber channel right 570x115 TDA 30/40
Combustion chamber channel bottom left 570x182.5 TDA 30/40
Combustion chamber channel top left 570x154 TDA 30/40
Combustor pad 650x317x3mm, TDA 30/40
Insulation Pellet combustion chamber 250.200.13 TDA 30/41
Insulation PE-SH 250.215.13 TDA 30/41
Insulation combustion chamber 650.290.13 TDA 30/41
Insulation grate 200.100.13 TDA 30/41
Insulation burn-out stone 198.156.13 TDA 30/41
