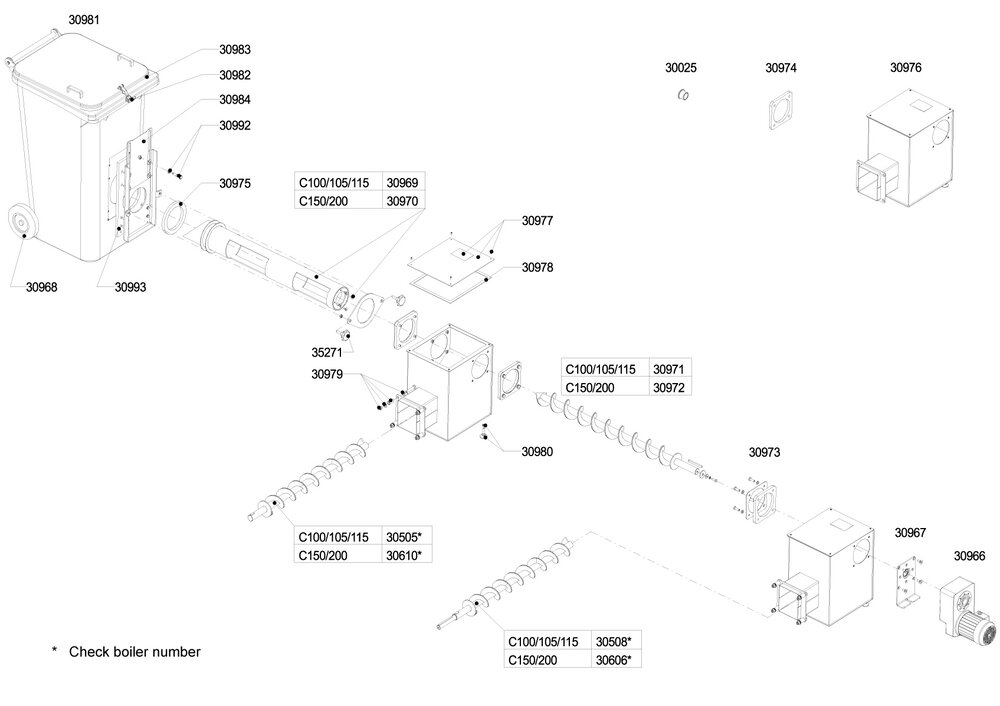

C150-200 Ash removal system

Compact 150 Compact 200 Automatic centralized ash removal system.

Ash removal system

HDG30025

HDG30025 Plain bearing bush 1B
Part No HDG30025

View

HDG30505

HDG30505 Ash auger flue ash
Part No HDG30505

View

HDG30508

HDG30508 Ash auger comb.chamber 8B
Part No HDG30508

View

HDG30606

HDG30606 Ash auger Compact 150-200 Combustion side, New style.
Part No HDG30606

View

HDG30610

HDG30610 Ash auger flue ash 8B
Part No HDG30610

View

HDG30966

HDG30966 Motor Gearbox 0.75kW 3 Phase 4B
Part No HDG30966

View

HDG30967

HDG30967 Torque support
Part No HDG30967

View

HDG30968

HDG30968 Wheel
Part No HDG30968

View

HDG30969

HDG30969 Auger tube cpl.
Part No HDG30969

View

HDG30970

HDG30970 Auger tube cpl.
Part No HDG30970

View

HDG30971

HDG30971 Ash auger cpl.
Part No HDG30971

View

HDG30972

HDG30972 Ash auger cpl.
Part No HDG30972

View

HDG30973

HDG30973 Gasket auger tube cpl.
Part No HDG30973

View

HDG30974

HDG30974 Gasket ring
Part No HDG30974

View

HDG30975

HDG30975 Gasket auger end
Part No HDG30975

View

HDG30976

HDG30976 Ash container cpl.
Part No HDG30976

View

HDG30977

HDG30977 Ash container lid cpl.
Part No HDG30977

View

HDG30978

HDG30978 Gasket kit
Part No HDG30978

View

HDG30979

HDG30979 Mounting set
Part No HDG30979

View

HDG30980

HDG30980 Gauge foot
Part No HDG30980

View

HDG30981

HDG30981 Ash container
Part No HDG30981

View

HDG30982

HDG30982 Lock
Part No HDG30982

View

HDG30983

HDG30983 Protection profile
Part No HDG30983

View

HDG30984

HDG30984 Feeder
Part No HDG30984

View

HDG30992

HDG30992 Locking pin
Part No HDG30992

View

HDG30993

HDG30993 Gasket
Part No HDG30993

View

HDG35271

HDG35271 Star-grip screw
Part No HDG35271

View
